Architecture diagrams

Rendered from the C4 model at docs/architecture/workspace.dsl in the team monorepo. Every container is labelled with the student ID of the member who owns it.

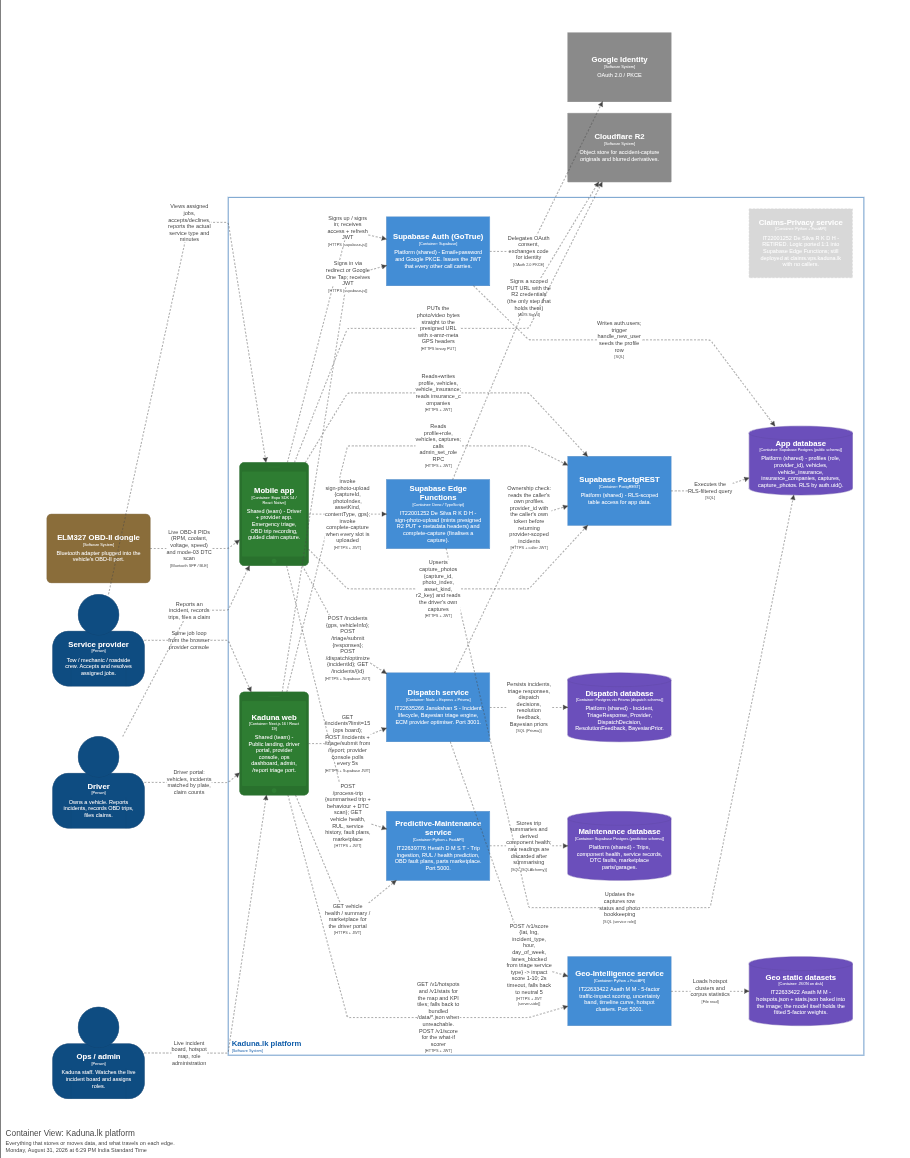

Containers Everything that stores or moves data, with owner IDs Open full size
C4 container diagram of the Kaduna.lk platform, each container labelled with its owner's student ID

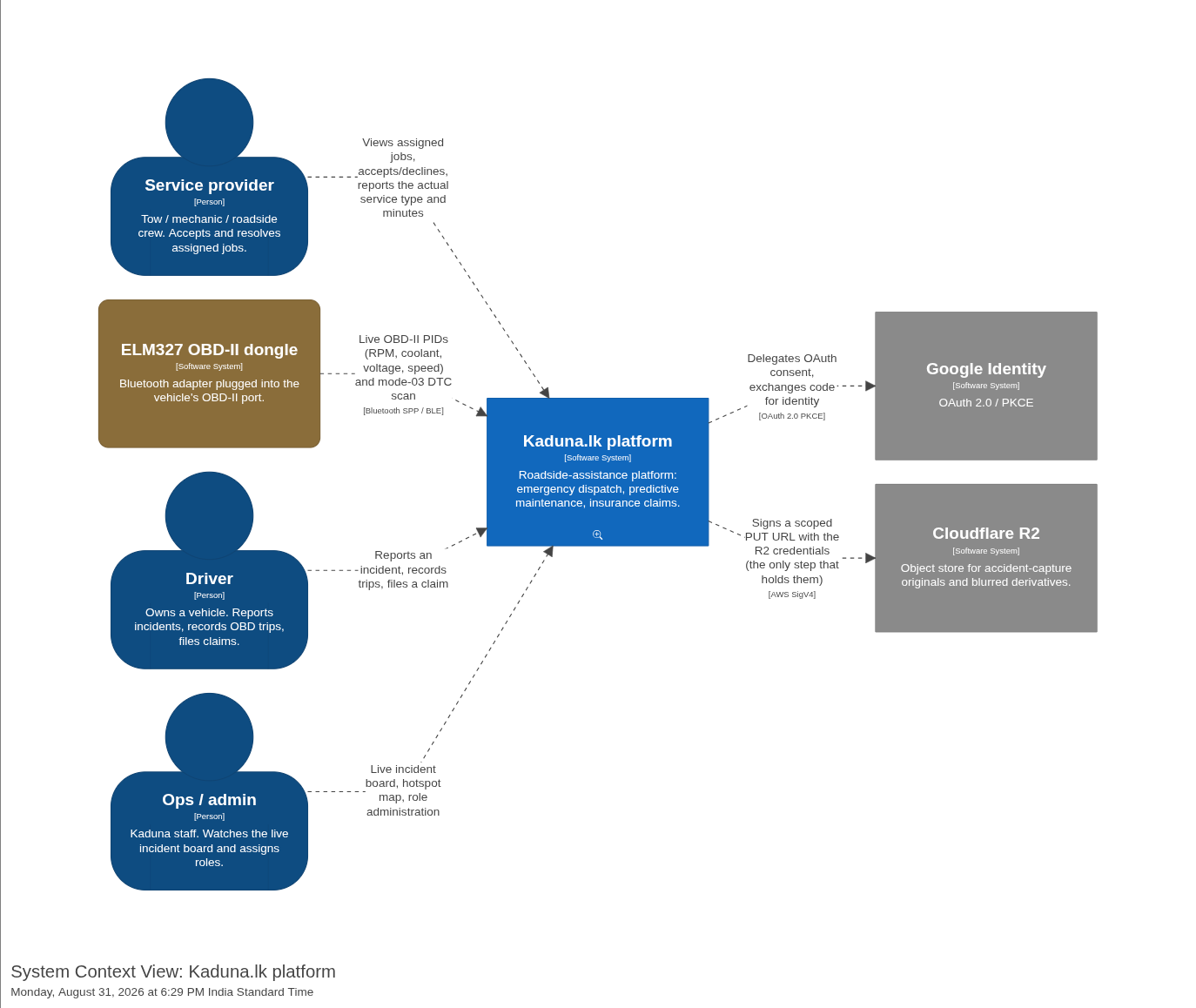

System context The platform and the people and systems around it Open full size
C4 system context diagram for the Kaduna.lk platform

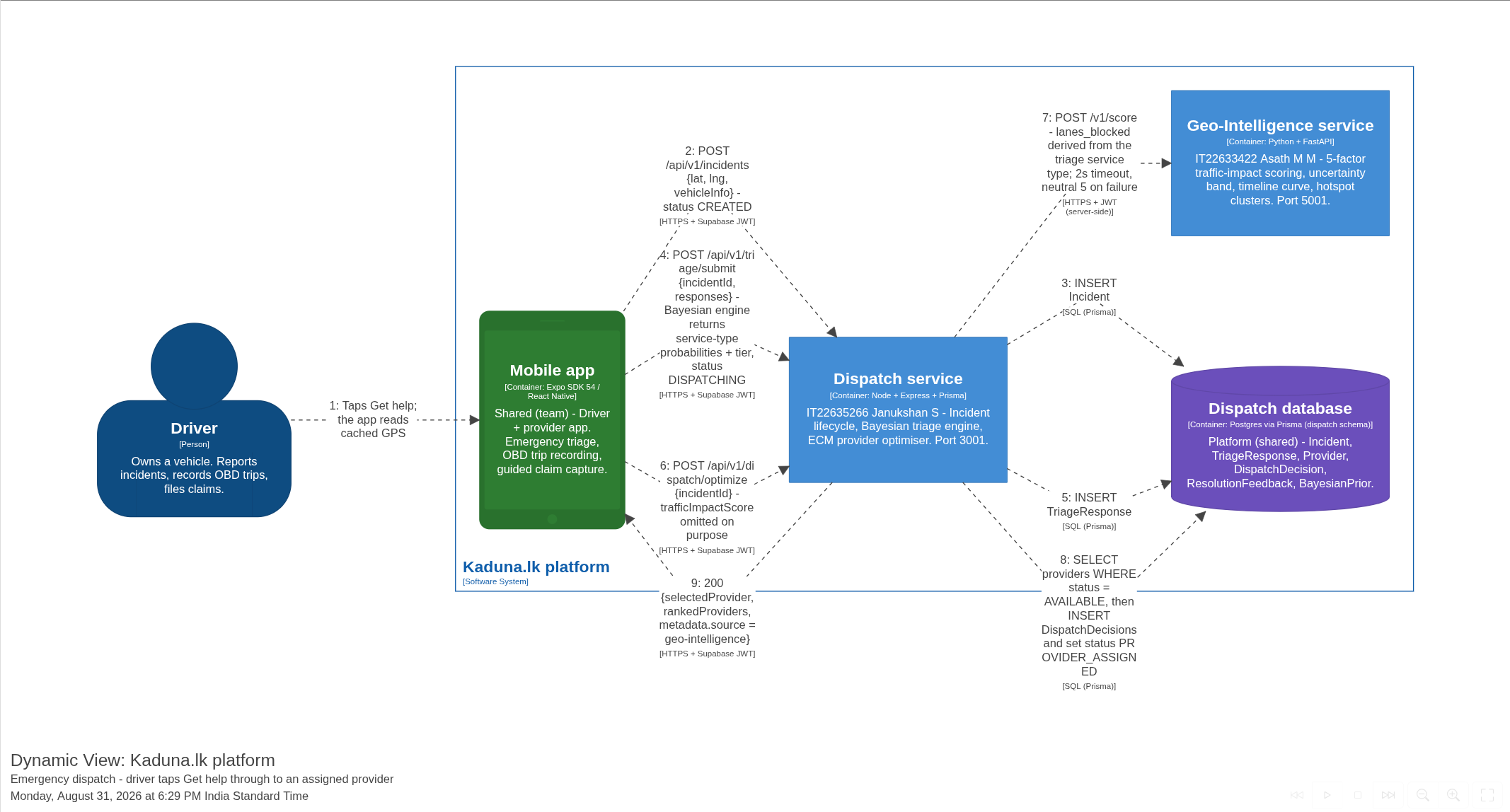

Emergency spine Mobile to dispatch to geo-intelligence to provider Open full size
Dynamic view of the emergency dispatch flow from the mobile app through dispatch and geo-intelligence to the assigned provider
